BTECH Relay ATAK Plugin 2.0 Quick Start Guide

GoTAK LLC USA
Updated

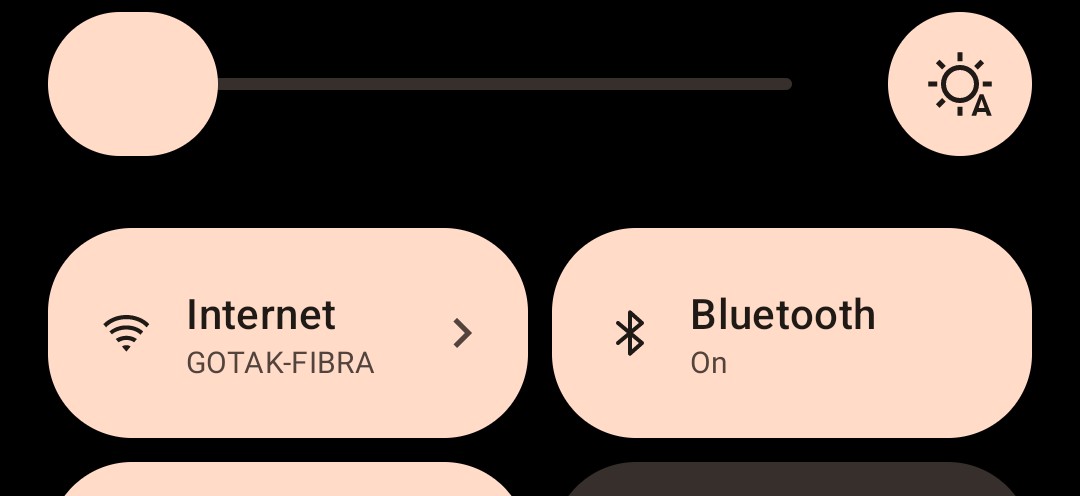

  1. Open the EUD Quick Settings Panel.
    Swipe down from the top of the screen to access the quick toggles, then hold Bluetooth.

  2. Screenshot_20251212-212611~2.png




    Pair the Radio.

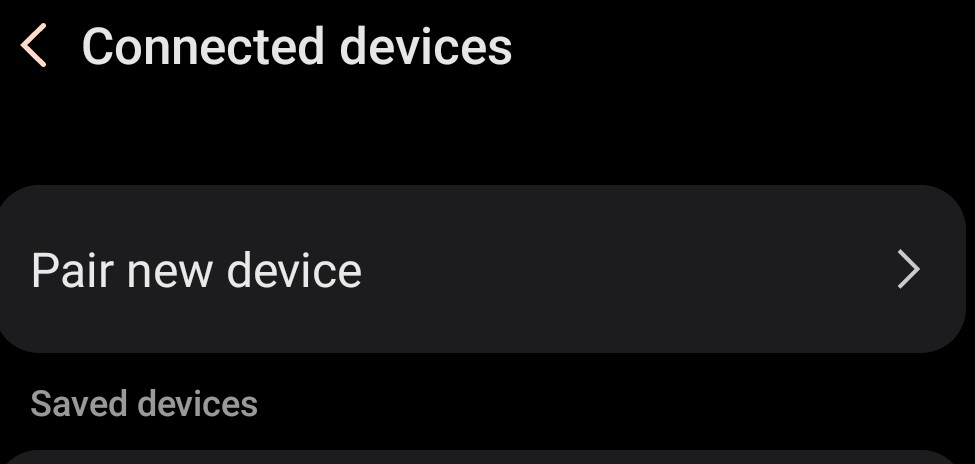

    Tap Pair new device → wait for the device scan → select UV-PRO from the list.
    Once paired, it will appear under “Paired devices.”
    If the radio does not appear, return to the radio’s Settings, ensure Bluetooth is enabled and the radio is in pairing mode, then try scanning again.




    BTECH Relay ATAK Plugin - Bluetooth available devices.png

    BTECH Relay ATAK Plugin - Pair on Bluetooth.png



  3. Connect via the Plugin.

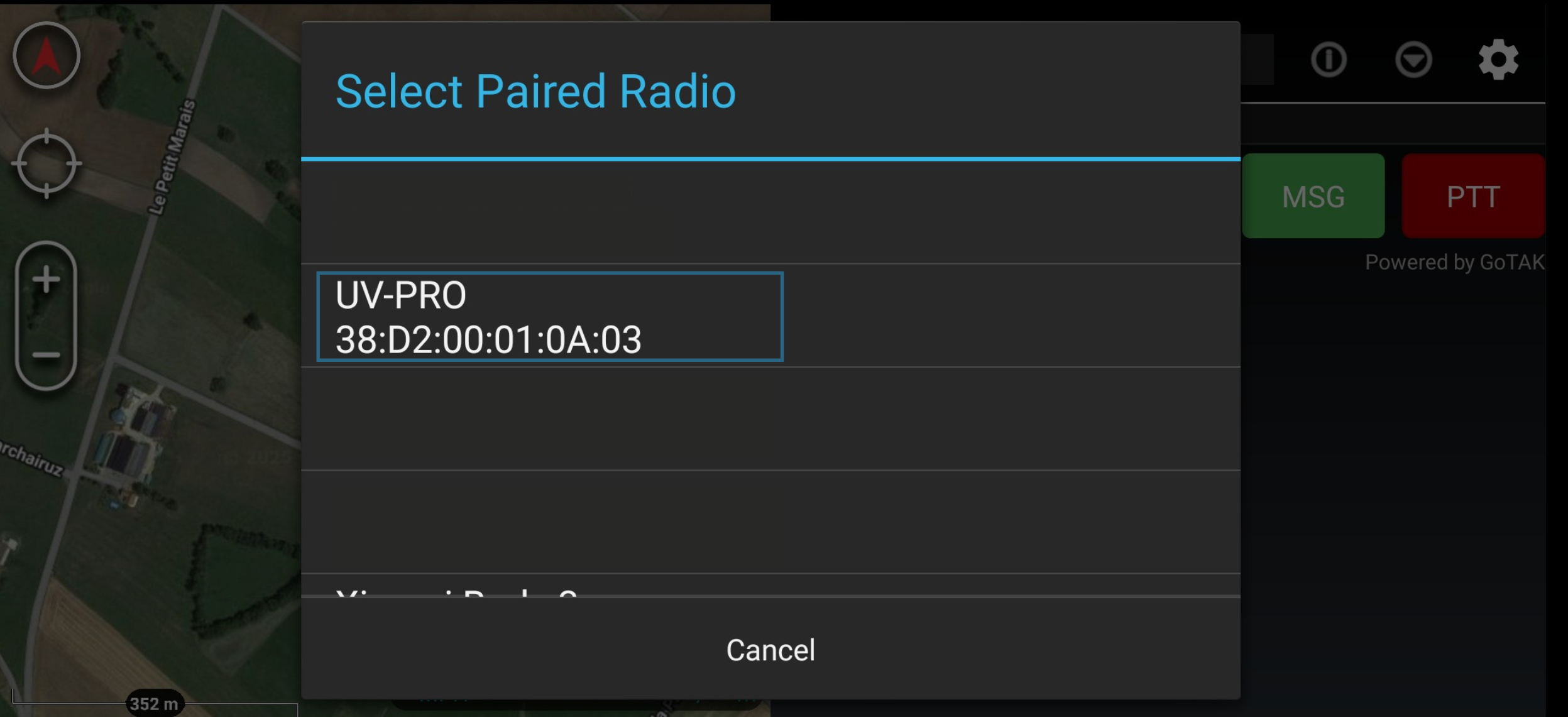

    Open the BTECH Relay plugin in ATAK → tap Connect → from Select Paired Radio, choose UV-PRO.

    BTECH Relay ATAK Plugin - Select Paired Radio.png


  4. Verify Connection.
    The plugin should now display the radio’s information, including MAC address, battery, channel, and encryption status.

    BTECH Relay ATAK Plugin showing CONNECTED.png

    If it still shows “Not connected – tap Connect to start”, repeat from step 3.

    BTECH Relay ATAK Plugin showing NOT CONNECTED.png
